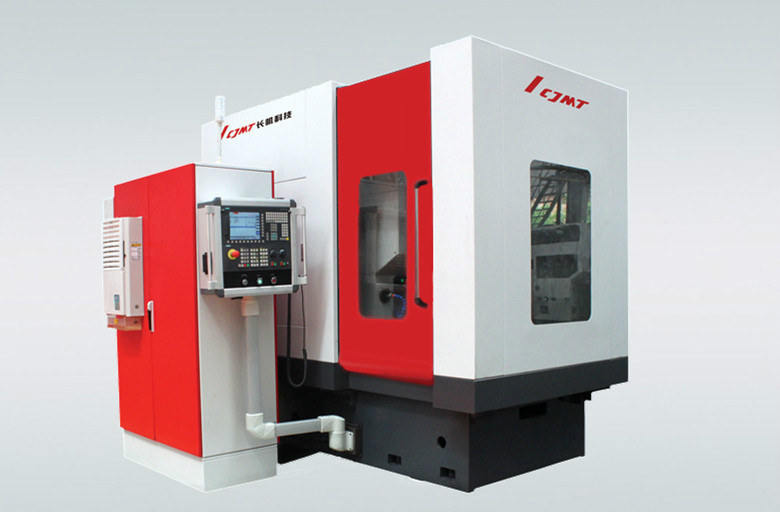

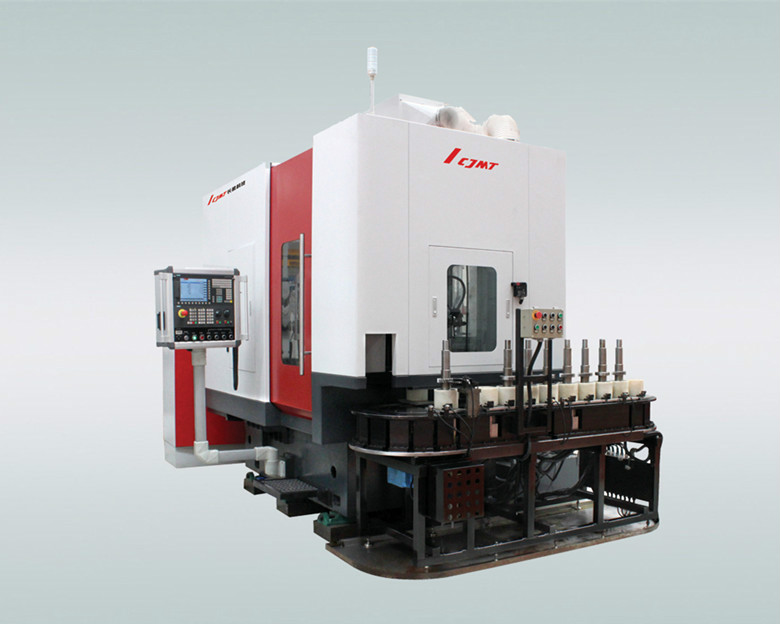

It is mainly used for machining internal or external cylindrical gear, helical gear, straight-sided internal spline and face associator,the reversed-taper gear can be machined by YKD5132×3.

The main motion is driven by AC frequency inverter motor with stepless.

Both circular feed(X axis) and radial feed (C1 or C2 axis) are driven by AC servo motor.

The machine possesses some functions as follows: cutter stopping at its up-most position, small number of teeth cutting as well as cutter relieving in oblique direction.

Specifications	YKS5132×3	YKD5132×3	YKS5132E	YKS5132H
Max. diameter of external（mm）	320	320	320	320
Max. diameter of internal（mm）	220+D_刀	220+D_刀	220+D_刀	220+D_刀
Max. module（mm）	8	8	8	8
Max. face width（mm）	90	90	90	90
Max. stroke length（mm）	100	100	100	100
Stroke speed（str/min）	125～1250	125～1250	125～1250	150～2000
Cutter relieving（mm）	≥0.3	≥0.3	≥0.3	≥0.3
Axial slide travel range of cutter head	-	-	-	-
Adjusting amount of stroke position（mm）	30	30	30	30
Spindle diameter（mm）	85	85	85	85
Diameter of worktable（mm）	420	325	420	420
Sloping angle of worktable	-	±12°	-	±12°
Distance between axis of cutter spindle and worktable （mm）	-110～265	-110～265	-110～265	110～300
Distance between the nose of spindle and worktable surface（mm）	235～365	155～285	190～320	140～270
Total power（kw）	15.2	15.2	15.2	7.5
Total weight（Kg） approx.	11000	11000	11000	8000

Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
